Digital Instruments Cluster (Dashboard) Original Analog Instrument Cluster Upgrade
Features
Intelligent control: Intelligent monitor can show your car informations in real time. Customization: Easily and widelly customizable. Eight view mode: intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode. 12.3 inch Screen 1920x720 HD IPS screen with 60fps. Linux Operating system. Supporst Mobile phone wireless projection screen. Supports original car’s Bluetooth phone call or music play. & WIFI remote upgrade. Easy Installation.
Specifications
CPU: RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C. GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s. Dual LVDS output or RGB output, support resolution 1920* 720@60fps. Three CVBS inputs. HDMI input or LVDS input 1920* 720@60fps. Supports 2-way SD card interface. 2-way USB 2.0 interface. Audio in / out. 2-way can. 4-way serial port, 2-way I2C, 2-way SPI Length: 454mm. Width: 234mm Height: 230mm. Weight: 2kg
ΕΓΓΥΗΣΗ ΕΛΛΗΝΙΚΗΣ ΑΝΤΙΠΡΟΣΩΠΕΙΑΣ 12+12 ΜΗΝΩΝ
12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο.
Αναζητήστε τα προϊόντα με την γνήσια κάρτα εγγύησης!
| Τεχνικά Χαρακτηριστικά | |
|---|---|
| CPU | RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C. |
| Customization | Easily and widelly customizable. |
| Eight view mode | intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode. |
| Feature 1 | 12.3 inch Screen 1920x720 HD IPS screen with 60fps. |
| Feature 10 | Three CVBS inputs. |
| Feature 11 | HDMI input or LVDS input 1920* 720@60fps. |
| Feature 12 | Supports 2-way SD card interface. |
| Feature 13 | 2-way USB 2.0 interface. |
| Feature 14 | Audio in / out. |
| Feature 15 | 2-way can. |
| Feature 16 | 4-way serial port, 2-way I2C, 2-way SPI |
| Feature 2 | Linux Operating system. |
| Feature 3 | Supporst Mobile phone wireless projection screen. |
| Feature 4 | Supports original car’s Bluetooth phone call or music play. |
| Feature 5 | & |
| Feature 6 | WIFI remote upgrade. |
| Feature 7 | Easy Installation. |
| Feature 8 | GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s. |
| Feature 9 | Dual LVDS output or RGB output, support resolution 1920* 720@60fps. |
| Height | 230mm. |
| Information 1 | Digital Instruments Cluster (Dashboard) | Original Analog Instrument Cluster Upgrade |
| Information 2 | 12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο. |
| Intelligent control | Intelligent monitor can show your car informations in real time. |
| Length | 454mm. |
| Weight | 2kg |
| Width | 234mm |

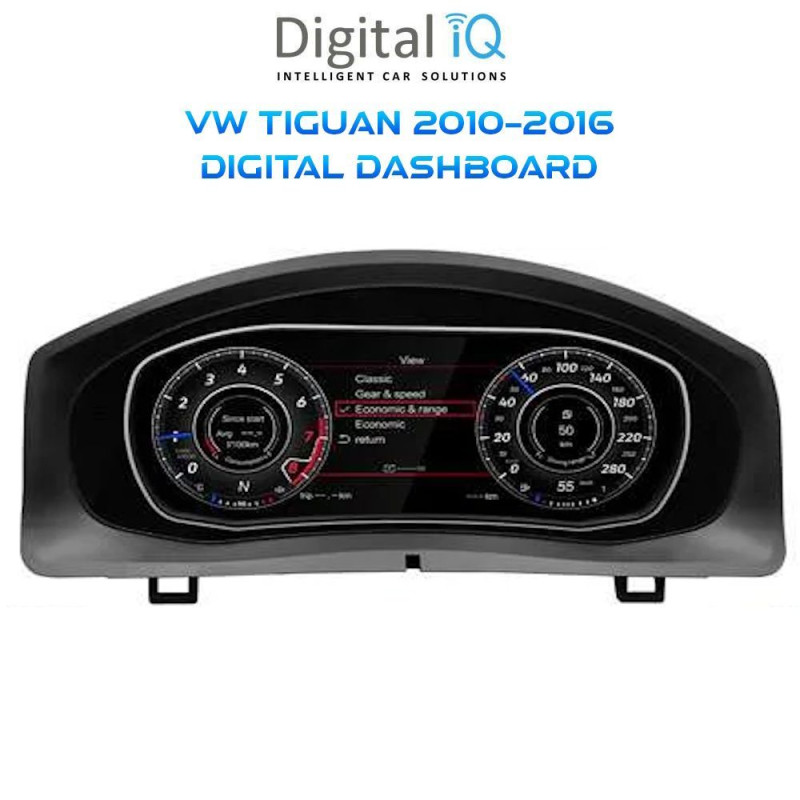

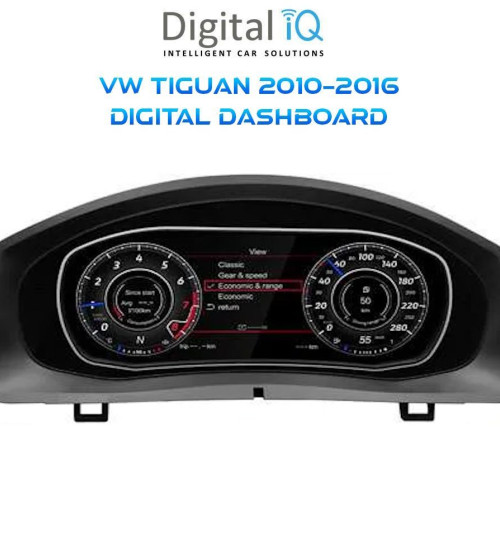

DIGITAL IQ ASC 760_DC (12.3") DIGITAL CLUSTER for VW TIGUAN mod. 2010-2016
- Κωδικός Προϊόντος: DIGITAL IQ ASC 760_DC
Digital Instruments Cluster (Dashboard) Original Analog Instrument Cluster Upgrade
Features
Intelligent control: Intelligent monitor can show your car informations in real time. Customization: Easily and widelly customizable. Eight view mode: intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode. 12.3 inch Screen 1920x720 HD IPS screen with 60fps. Linux Operating system. Supporst Mobile phone wireless projection screen. Supports original car’s Bluetooth phone call or music play. & WIFI remote upgrade. Easy Installation.
Specifications
CPU: RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C. GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s. Dual LVDS output or RGB output, support resolution 1920* 720@60fps. Three CVBS inputs. HDMI input or LVDS input 1920* 720@60fps. Supports 2-way SD card interface. 2-way USB 2.0 interface. Audio in / out. 2-way can. 4-way serial port, 2-way I2C, 2-way SPI Length: 454mm. Width: 234mm Height: 230mm. Weight: 2kg
ΕΓΓΥΗΣΗ ΕΛΛΗΝΙΚΗΣ ΑΝΤΙΠΡΟΣΩΠΕΙΑΣ 12+12 ΜΗΝΩΝ
12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο.
Αναζητήστε τα προϊόντα με την γνήσια κάρτα εγγύησης!
| Τεχνικά Χαρακτηριστικά | |
|---|---|
| CPU | RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C. |
| Customization | Easily and widelly customizable. |
| Eight view mode | intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode. |
| Feature 1 | 12.3 inch Screen 1920x720 HD IPS screen with 60fps. |
| Feature 10 | Three CVBS inputs. |
| Feature 11 | HDMI input or LVDS input 1920* 720@60fps. |
| Feature 12 | Supports 2-way SD card interface. |
| Feature 13 | 2-way USB 2.0 interface. |
| Feature 14 | Audio in / out. |
| Feature 15 | 2-way can. |
| Feature 16 | 4-way serial port, 2-way I2C, 2-way SPI |
| Feature 2 | Linux Operating system. |
| Feature 3 | Supporst Mobile phone wireless projection screen. |
| Feature 4 | Supports original car’s Bluetooth phone call or music play. |
| Feature 5 | & |
| Feature 6 | WIFI remote upgrade. |
| Feature 7 | Easy Installation. |
| Feature 8 | GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s. |
| Feature 9 | Dual LVDS output or RGB output, support resolution 1920* 720@60fps. |
| Height | 230mm. |
| Information 1 | Digital Instruments Cluster (Dashboard) | Original Analog Instrument Cluster Upgrade |
| Information 2 | 12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο. |
| Intelligent control | Intelligent monitor can show your car informations in real time. |
| Length | 454mm. |
| Weight | 2kg |
| Width | 234mm |
- Κατασκευαστής: Digital iQ
- Viewed: 11
- Διαθεσιμότητα: 10-20 ημέρες κατόπιν παραγγελίας
